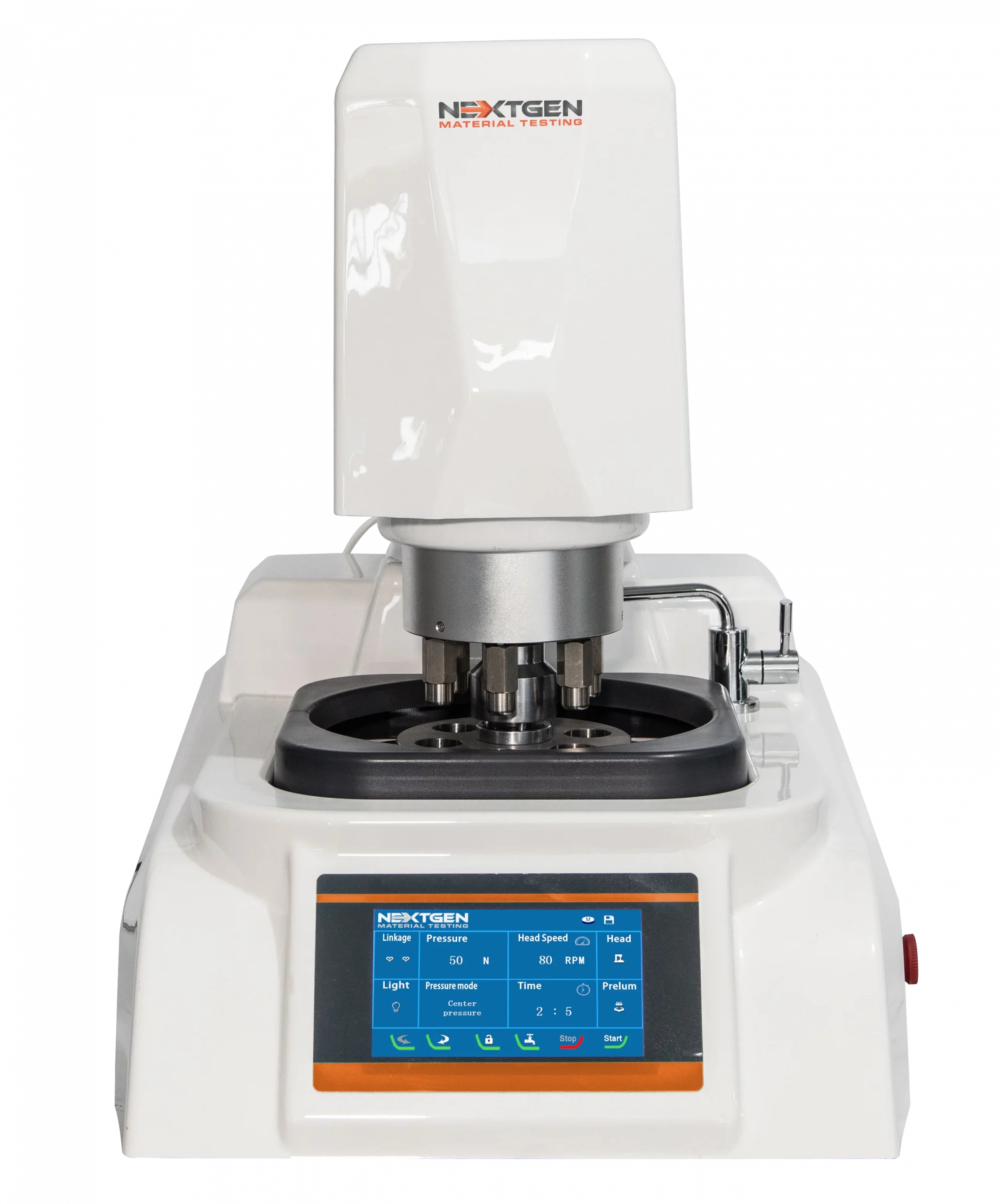

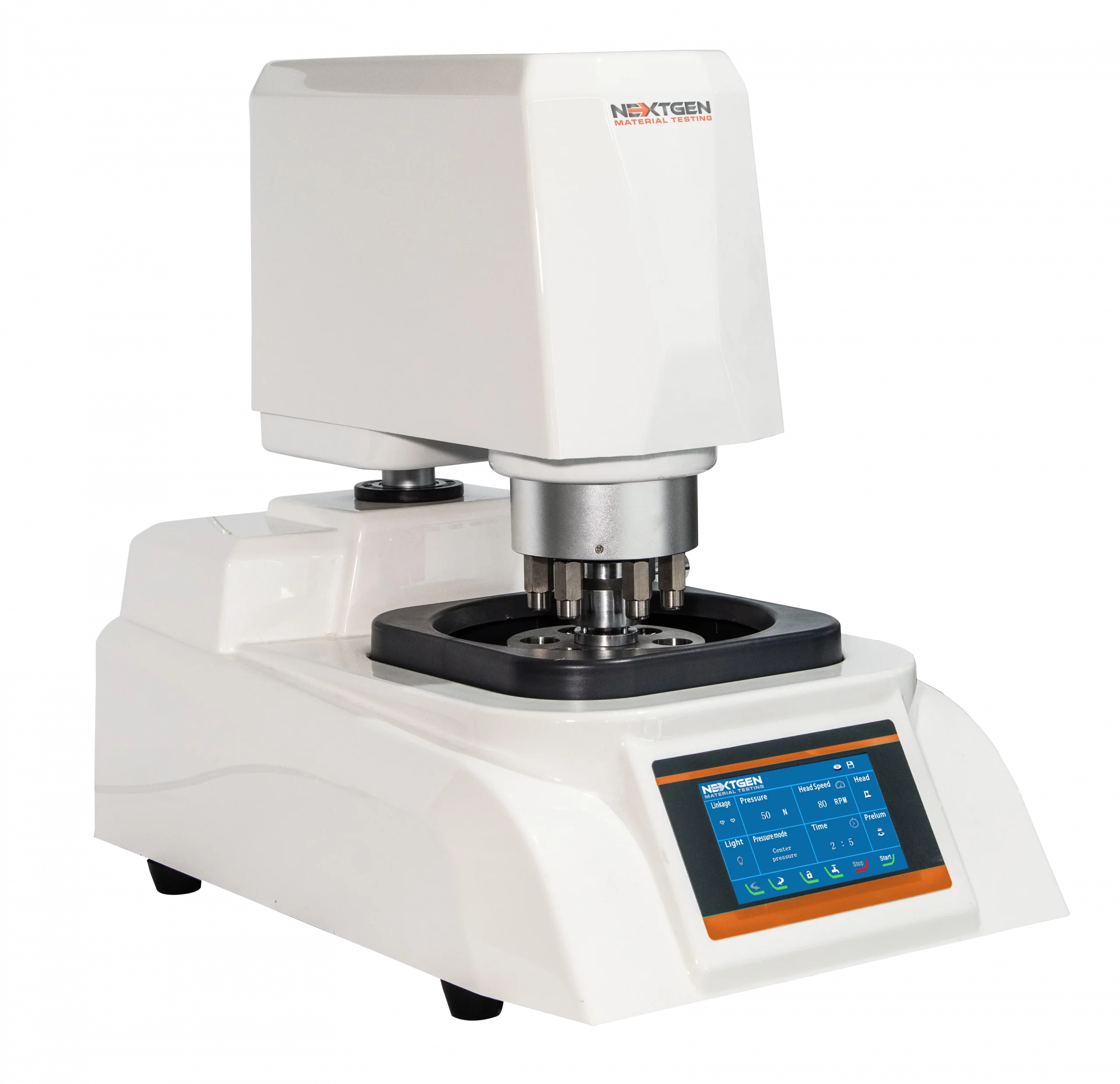

GenGrind FA-IC 250S 10″ Single Wheel Fully Automatic Grinder & Polisher – Variable Speed 100-1400rpm – Both Individual and Central Force Control – Touch Screen Controlled with Automatic Specimen Mover Power Head – (various wheel sizes available)
Metal Testing Equipment
Description
Introducing the GenGrind FA-IC 250S Single Wheel Polisher and Grinder, an advanced and fully automatic metallographic grinding and polishing machine. This state-of-the-art equipment seamlessly integrates pre-grinding, grinding, and polishing processes to deliver exceptional results.
Controlled through a user-friendly touch screen interface, the GenGrind FA-IC features a DC brushless motor driving the grinding and polishing plate, while the grinding head is efficiently powered by a stepper motor. This design ensures stable rotation, low noise levels, and utmost safety and reliability during operation.
The machine allows users to customize various settings such as rotational speed, pressure, and sample preparation time according to their specific requirements. These adjustments are effortlessly made through the intuitive touch screen, enabling users to cater to different needs with ease.
Incorporating its own lighting system, the GenGrind FA-IC provides convenient sample handling and placement. Additionally, its cooling device effectively prevents overheating during grinding, safeguarding the integrity of the metallographic structure. This feature is particularly beneficial in preserving the quality of metallographic samples.
Whether in metallographic laboratories within factories, colleges, or research institutes, the GenGrind FA-IC Single Wheel Polisher and Grinder stands as the ultimate choice for precision grinding and polishing applications. Its cutting-edge capabilities and reliable performance make it the preferred solution for achieving impeccable metallographic results.
GenGrind FA-IC 250S Features
-
Super cost-effective, offering outstanding value for money.
-
Single working plate with standard dimensions of 254mm, providing 50% more working area compared to regular grinding and polishing machines.
-
Capable of polishing 6 pieces of 30mm diameter samples in a single operation, maximizing productivity.
-
High-end ABS shell, giving it a sophisticated and modern appearance.
-
User-friendly touch screen display for clear and intuitive interface, ensuring simple operation.
-
Adjustable testing time, rotating speed, and pressure to suit specific needs.
-
The grinding head is equipped with an electromagnetic clutch for convenient and quick operation, automatically locking when needed.
-
Offers stepless speed regulation from 100 to 1400rpm or four constant speed options, with the ability to define three common speeds for pre-grinding, grinding, and polishing.
-
Allows storage of up to 100 groups of grinding and polishing programs for quick recall and efficient workflow.
-
Features a magnetic disc design for swift disc changes, enhancing the replacement of sandpaper and polishing cloth.
-

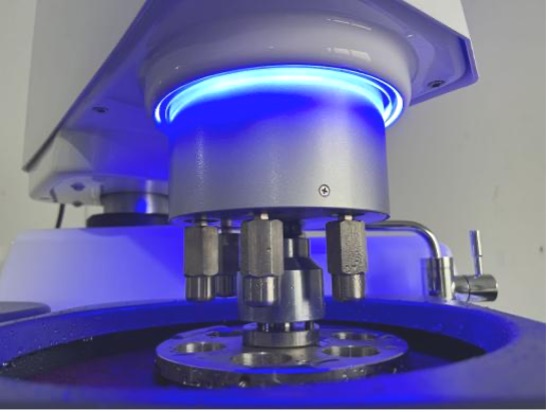

Boasts a sample chuck with free-rotating design, complemented by an internal lighting system, ensuring ease in sample handling.
-
Equipped with a built-in nozzle, sewage collection tank, and automatic cleaning, streamlining maintenance tasks.
-
Utilizes DC brushless and stepper motors for stable rotation, low noise levels, and prolonged machine life.
-
The base is made of a single-piece aluminum alloy material, offering lightweight construction, excellent shock absorption, and corrosion resistance.
7" Touch Screen User Friendly Control Display
GenGrind FA-IC 250S Technical Specification
|
Model |
GenGrind FA-IC 250S |
|
Disc Diameter |
250mm (10") |
|
Speed of Working Plate |
100-1400 rpm Stepless Speed Supports Clockwise and Counter clockwise directions |
|
Four Level Constant Speeds |
V1=300rpm, V2=500rpm, V3=800rpm, V4=1000rpm (each speed can be set between 100-1400rpm) |
|
Grinding Head Speed |
0-200rpm |
|
Grinding Head Power |
0.2kW (Clockwise Rotating) |
|
Grinding Head Lock Mode |
Automatic Electronic Lock |
|
Sample Holder |
Standard is 6pcs @ 30mm Dia. (other sizes available upon request - Φ25mm, Φ30mm, Φ40mm or 1”, 1.25”, 1.5” or custom) |
|
Automatic Mode |
Can program speed, running time and grinding wheel direction with timing functionality |
|
Sample Pressure Range |
Center Load: 0-150N (Commonly used 40-120N) Individual Force: 0-90N |
|
Pressure Loading Range |
Single Point Pneumatic Pressure and Pneumatic Central Pressure |
|
Pressure Adjustment |
Digital Voltage Regulation |
|
Timing Function |
0-99 Minutes |
|
Power Supply |
110V 50/60Hz 1.8kW |
|
Dimensions & Weight |
19.7” x 30.3” x 27.6”; 176lbs / 500 x 770 x 700mm; 80kg |
GenGrind FA-IC 250S Standard Configuration
-
GenGrind FA-IC 250S Single Wheel Fully Automatic Grinder and Polisher with Individual and Central Pneumatic Force Control
-
Grinding Plate 254mm
-
Polishing Cloth with PSA (250mm) (4)
-
Grinding Papers 400# (4)
-
Grinding Papers 800# (4)
-
Grinding Paper 1200# (4)
-
Waterproofing Ring (On Machine)
-
Paper Disc
-
Magnetic Disc
-
Water Inlet Hose 0.75”
-
Water Outlet Hose 32mm
-
Power Line and Operational Manual
Important note: Sample Specimen size to be indicated at time of order
