GenGrind SA-C 250S 10″ Single Wheel Semi Automatic Grinder & Polisher – Variable Speed 100-1000rpm – Central Force Control – Touch Screen Controlled with Automatic Specimen Mover Power Head – (various wheel sizes available)
Metal Testing Equipment
Description
Introducing the GenGrind SA-C 250S – your ultimate semi automatic grinder and polisher. The GenGrind SA-C 250S boasts automatic, two direction control on a spacious 10”Ø wheel (254mmØ) with stepless variable speed. Enjoy intuitive touch screen controls and a user-friendly interface, enhanced by cutting-edge programming and parameter storage technologies. Read more in our MEGA blog!
Experience unparalleled efficiency with the robust central-pressure head, featuring clockwise rotation, adjustable speed, and pressure. Elevate your sample preparation effortlessly with the GenGrind SA-C 250S.
GenGrind SA-C 250S Features
-
Advanced grinder polisher with automatic central pressure head.
-
Highly cost-effective, stable quality, customizable to customer requirements.
-
One-piece aluminum alloy machine base for lightweight, shock absorption, and corrosion resistance.
-
Single working plate, standard 254mm dimension, 50% larger than typical machines.
-
Polishes 6 pieces of 30mm diameter samples in one cycle.
-
High-end ABS shell for a novel appearance and durability.
-
Easy cleaning with built-in nozzle waste collection tank for automatic cleaning.
-
Clear touch color screen display control for intuitive operation.
-
Settable testing time, rotating speed, and pressure.
-
Electromagnetic clutch locks the grinding head for convenient operation (optional).
-
Stepless speed regulation from 100-1000r/min or four constant speeds.
-
Stores 100 groups of grinding and polishing programs for quick recall.
-
Magnetic disc design for efficient sandpaper and polishing cloth replacement.
-

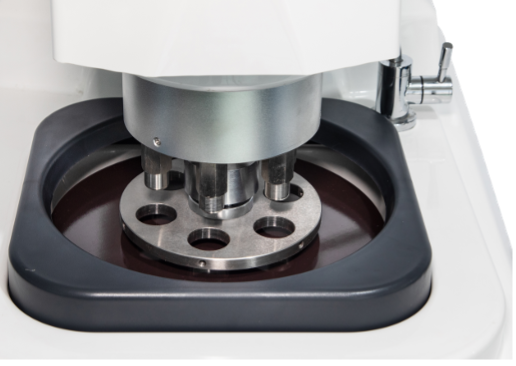

Free-rotating sample chuck with internal lighting system for easy sample handling.
-
Three-phase silent motor and stepping motor for stable, quiet, and durable performance.
-
Automatic centering to prevent multi-faceted grinding and polishing.
GenGrind SA-C 250S Technical Specification
|
Model |
GenGrind SA-C 250S |
|
Disc Diameter |
250mm (10") with Magnetic Disc |
|
Speed of Working Plate |
100-1000 rpm Stepless Speed Supports Clockwise and Counter clockwise directions |
|
Four Level Constant Speeds |
V1=300rpm, V2=500rpm, V3=800rpm, V4=1000rpm (each speed can be set between 100-1400rpm) |
|
Grinding Head Speed |
0-120rpm |
|
Grinding Head Power |
0.2kW (Clockwise Rotation) |
|
Grinding Head Lock Mode |
Manual Lock (Automatic Electronic Optional) |
|
Sample Pressure Range |
0-0.5MPa (Commonly Used is 0.1-0.3MPa) |
|
Working Wheel Power |
1.1kW (Clockwise and Counter Clockwise) |
|
Sample Holder |
Standard is 6pcs @ 30mm Dia. (other sizes available upon request - Φ25mm, Φ30mm, Φ40mm or 1”, 1.25”, 1.5” or custom) |
|
Pressure Loading Type |
Pneumatic Central Pressure |
|
Pressure Adjustment |
Manual Pressure Adjustment |
|
Timing Function |
0-99 Minutes |
|
Power Supply |
110V 50/60Hz 1.8kW |
|
Dimensions & Weight |
19.7” x 30.3” x 27.6” / 500 x 770 x 700mm; 176lbs / 80kg |
GenGrind SA-C 250S Standard Configuration
-
GenGrind SA-C 250S Single Wheel Semi Automatic Grinder and Polisher with Central Pneumatic Force Control
-
Grinding Plate 254mm
-
Polishing Cloth with PSA (250mm) (4)
-
Grinding Papers 400# (4)
-
Grinding Papers 800# (4)
-
Grinding Paper 1200# (4)
-
Waterproofing Ring (On Machine)
-
Paper Disc
-
Magnetic Disc
-
Water Inlet Hose 0.75”
-
Water Outlet Hose 32mm
-
Power Line and Operational Manual
Note: Check out our consumables catalogue starting on Page 3 for Mounting Press consumables.
Related Products

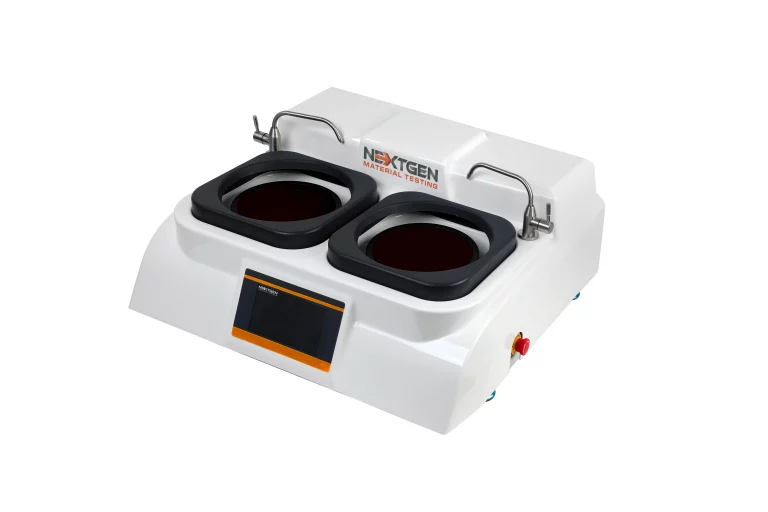

GenGrind N Series 8” 200S / 10" 250S / 12" 300 S - Advanced Metallographic Grinder & Polisher - Variable Speed 50-1000rpm –Touch Screen Controlled
Introducing the GenGrind N Series metallographic grinders and polishers, offered in sizes 8", 10", or 12" diameter.

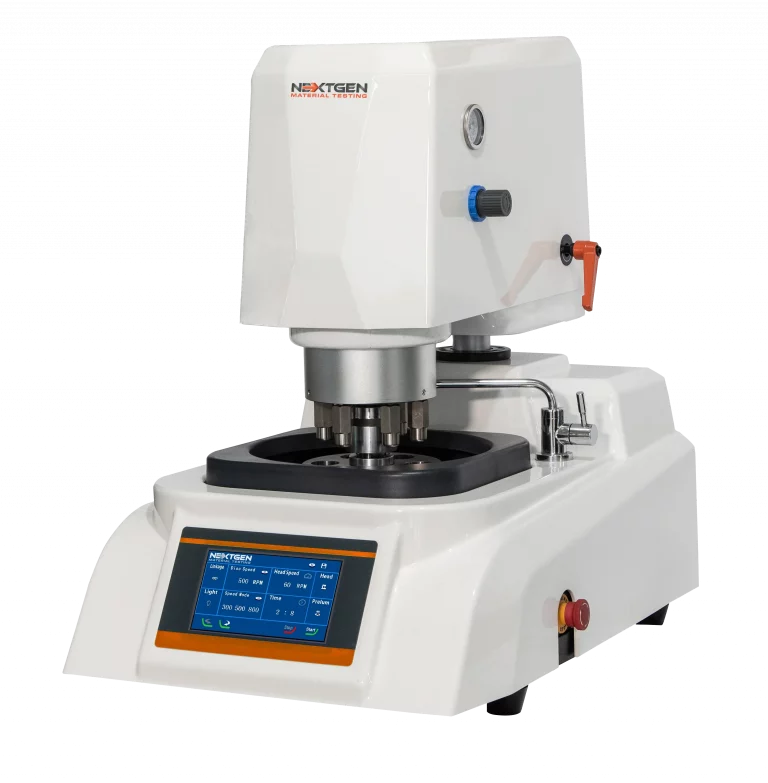

GenGrind SA-I 250S 10" Single Wheel Semi Automatic Grinder & Polisher - Variable Speed 100-1000rpm – Individual Force Control - Touch Screen Controlled with Automatic Specimen Mover Power Head – (various wheel sizes available)
